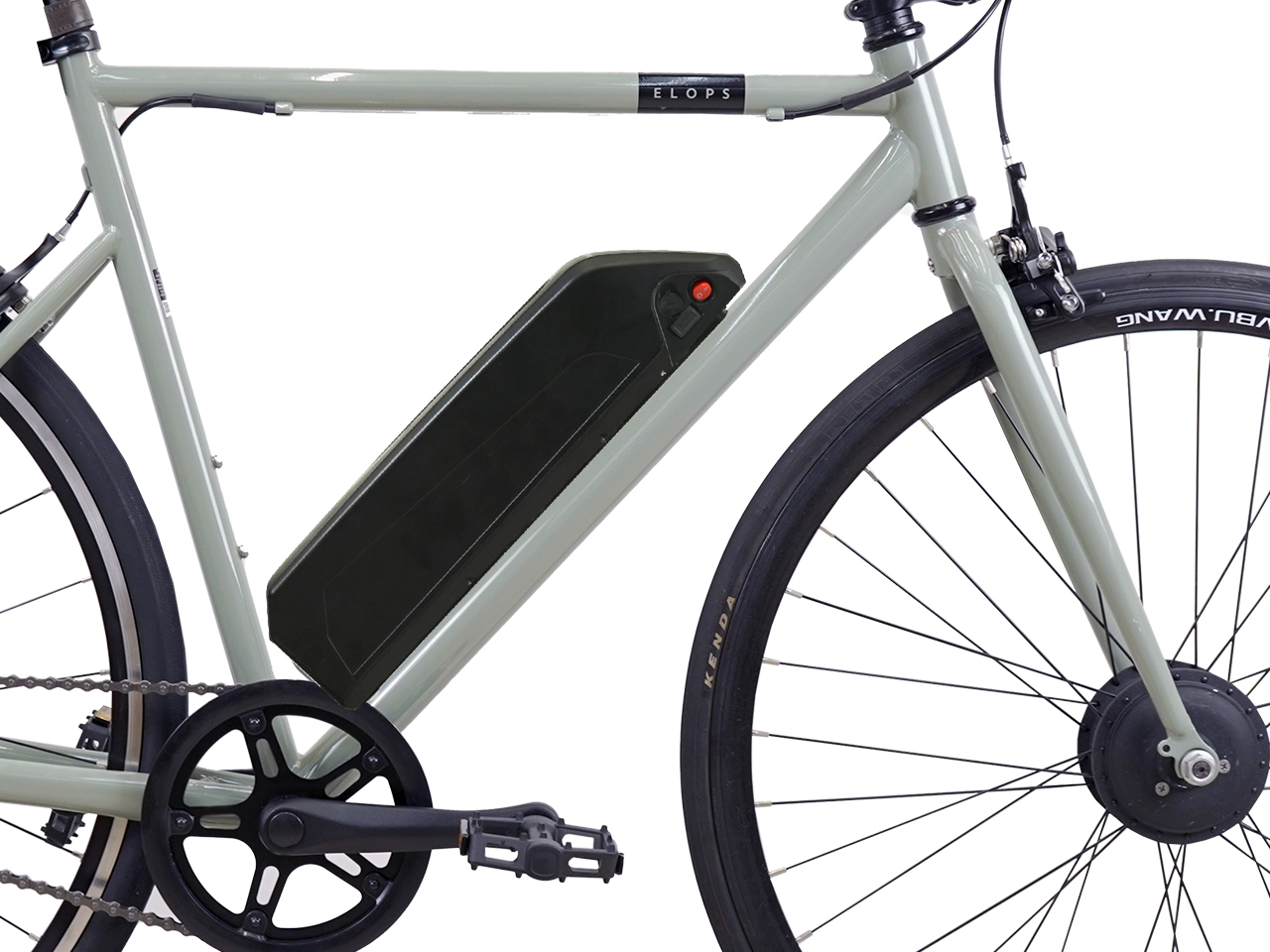

LVBU 500W Powerful Ebike Kit

Only one cable connection, Converting a normal bike to electric

Smart Asssit system/ High Efficient Output Arrangement/ Bluetooth 5.0/ Induction cut off system/ Built in Gyroscope/ Road Slope degrees detection/ All Terrain Application/ Anti-theft tracking

  • Smart ebike kit

    Fast installation in 5 minutes

  • 24-29 inch

    Multiple wheel size

  • Bluetooth 5.0

    A new era of interactive experience

  • Speed ≤42km/h

    250/350W high speed permanent magnet motor

  • Micro Power

    Provides you the best cycling experience

  • 2 drive ways

    Throttle / Pedal assist

Product Specifications

    Model
    KH50S / KH52S
    Battery Capacity
    36V15Ah / 48V 12Ah
    Charging time
    6H
    Battery Type
    18650 power lithium ion battery
    Charger
    AC110V-AC220V DC 36V 2A / DC48V 2A 5502plug
    Assist Range
    150km
    Top Speed
    32km/h / 42km/h
    Wheel size
    24/26/27.5/28/29/700C
    Rated Power
    250W/300W/500W
    Motor Structure
    Gear drive
    Motor Efficiency
    >80%
    Max Torque
    30N.m / 35N.m / 70N.m
    Wireless Connection
    Bluetooth 5.0 (Allows the controller to connect to multiple devices at the same time)
    Product Dimensions
    Motor Weight
    2.6kg/2.55kg/3.25kg/3.45kg/2.7kg (250w Front/250w Rear/350w Front/350w Rear/250w Rear with torque sensor)
    Battery Weight
    3.15 kg /3.1 kg ( KH50S/ KH52S)
    Controller Weight
    0.5 kg
    Package
    71*71*22cm

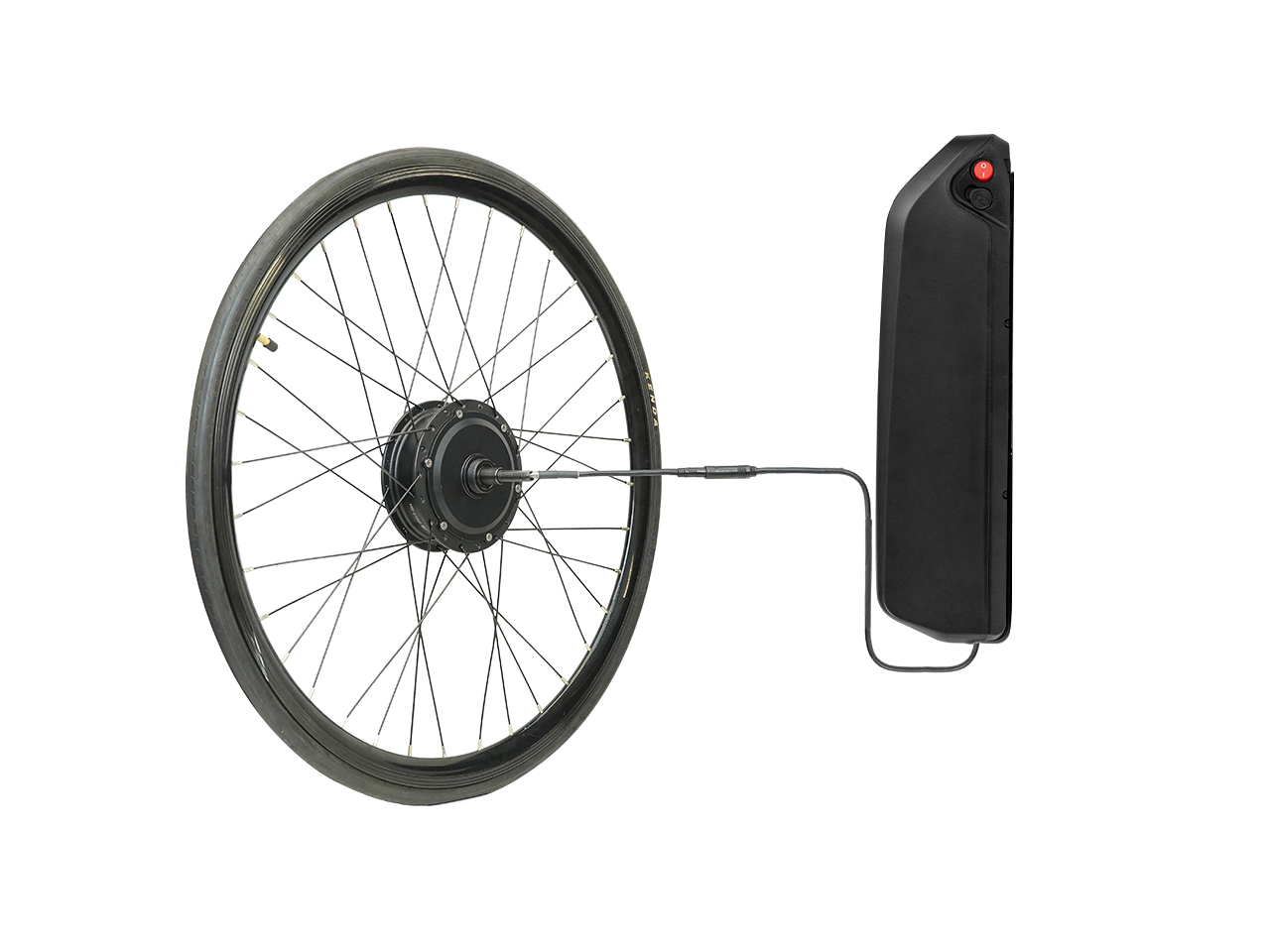

Just 2 steps to convert a normal bike into a smart ebike

Only one connection cable is required to connect the battery and the motor.

INSTALLATION REQUIREMENTS

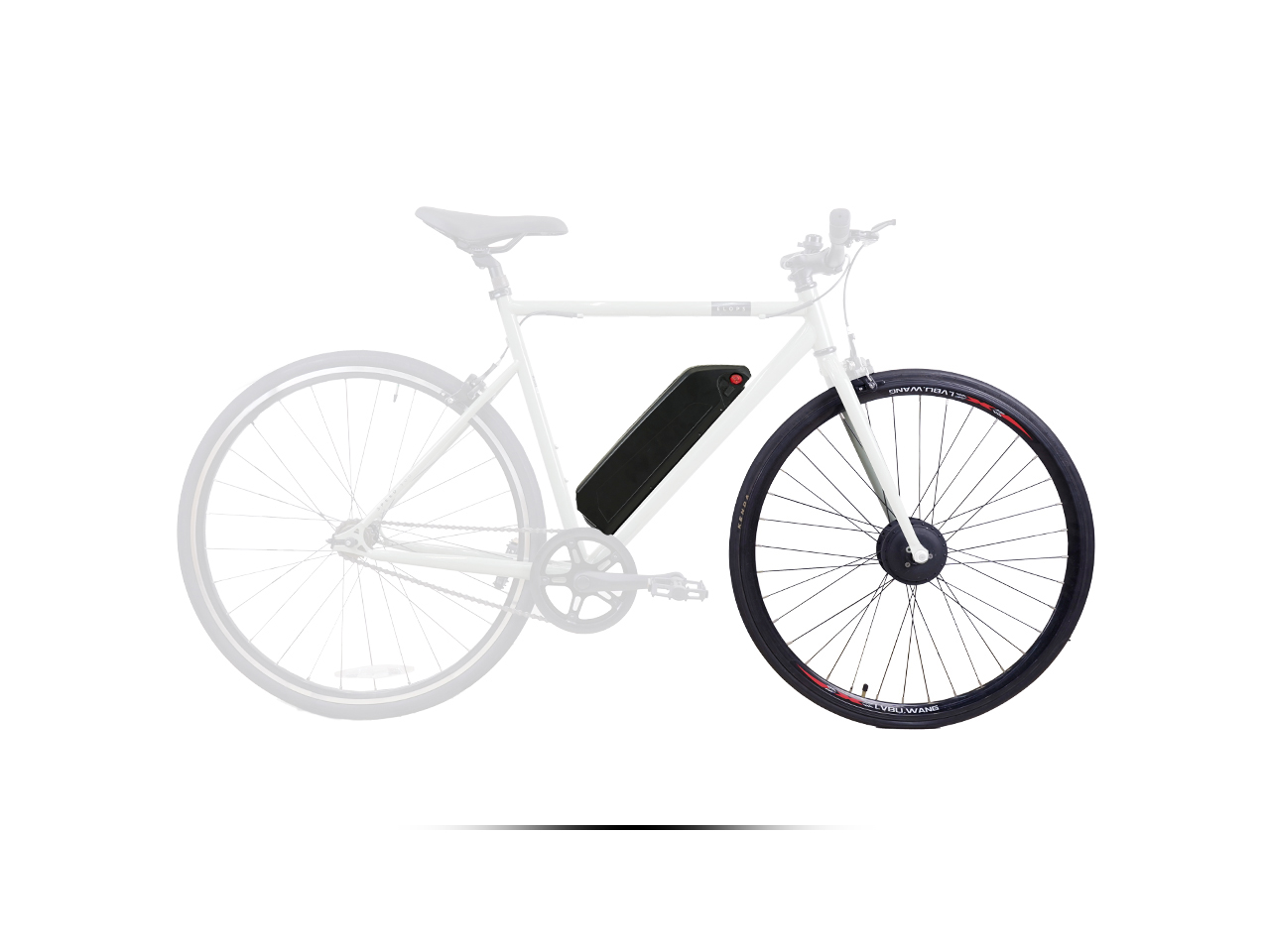

Fits Every Size Of Bike

KH50S electric bicycle kit fits all standard bikes. It has multiple sizes from 24" to 29" and 700C

High quality 18650 lithium battery

EV lithium-ion battery cell with internal resistance as low as 18mΩ, capacity of 2900mA, 3C high-rate discharge.The 18650 power lithium battery offers consistency, high energy density, and faster charge-discharge performance.Tried and tested over time, 80% capacity remains after 1000 cycles.

Using high-performance and high-safety BMS battery protection system

  • Over-discharge protection
  • Over current protection
  • Temperature protection
  • Over charge protection
  • Short circuit protection
  • Battery balance

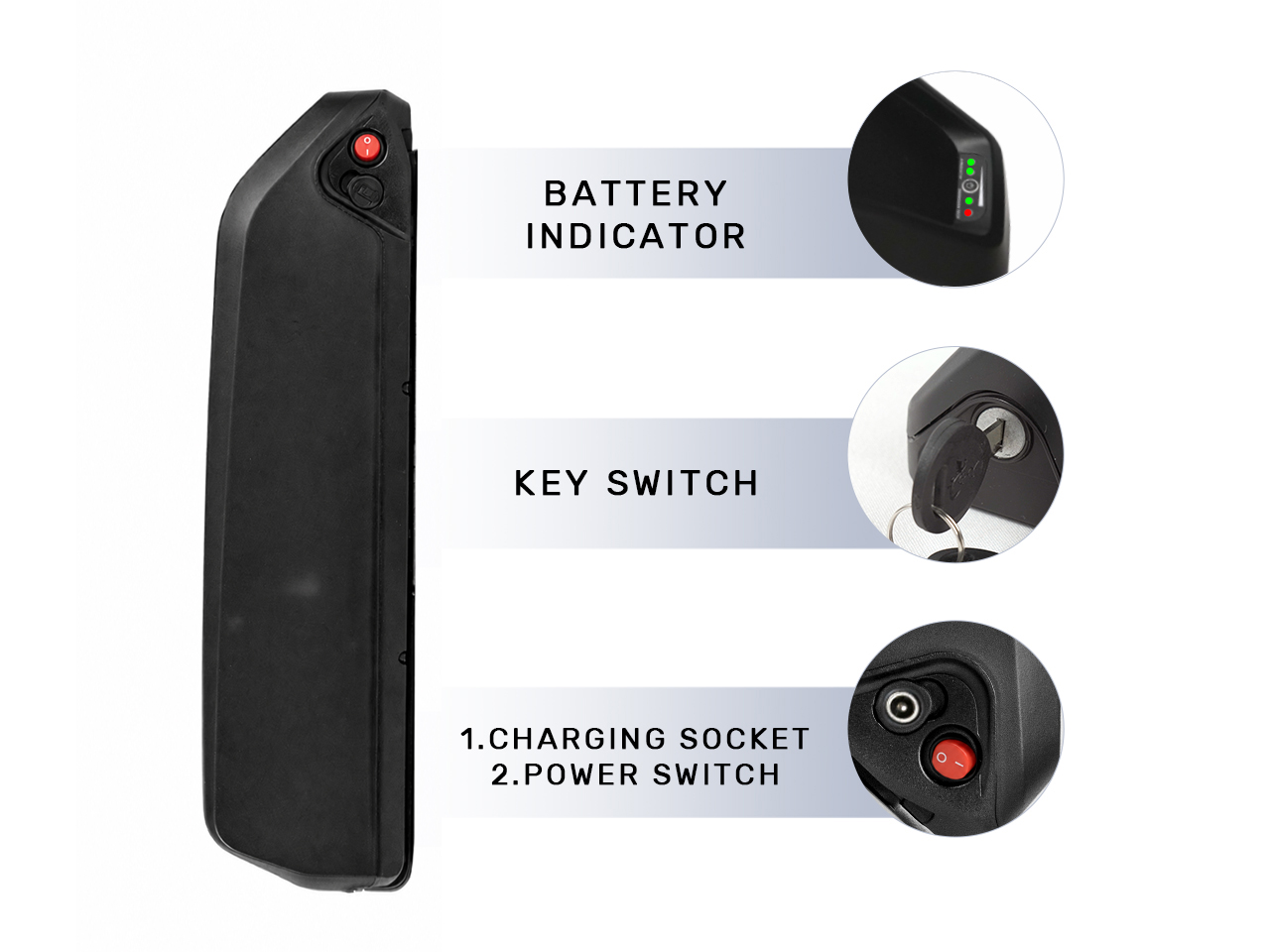

Multifunction battery

ARM Cortex-M3 main chip

with 6-axis gyroscope motion processing chip
configure Bluetooth 5.0 Moduel
6 high-sensitivity speed-measuring magnets for precise speed measurement

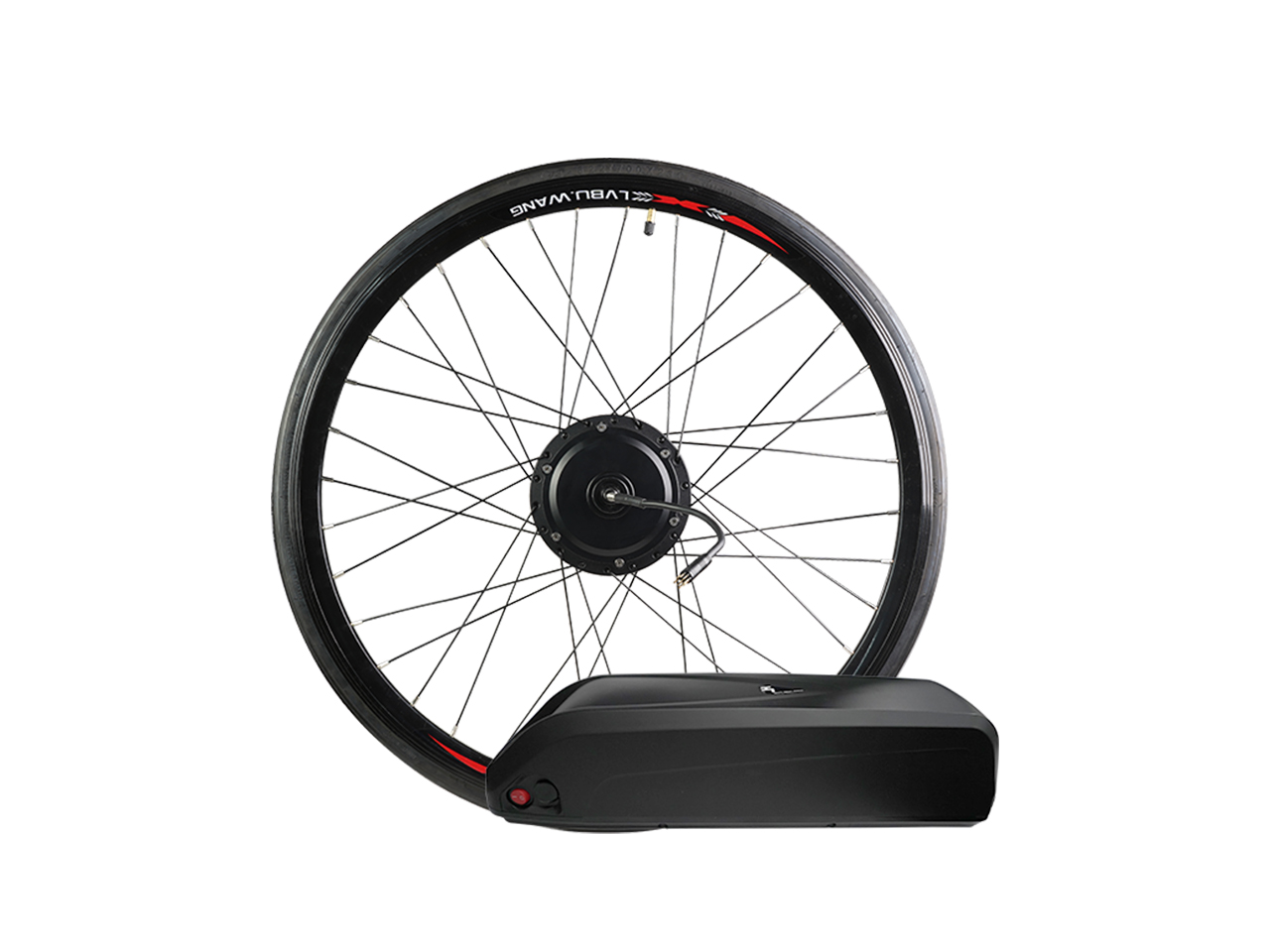

250-500W high quality motor

Small size, light weight, high efficiency, smooth operation, long life Planetary gear and clutch: no resistance, easy to ride even when the battery is dead.

Rated power: 250W/350W/500W
Voltage: 36V/48V Structure: Gear Drive
Efficiency: >80% Max torque: 35/40/70(N.m)
Top speed: 32/35/42(km/h) Peak power: 500W/1000W

Speed up to 42km/h

Speed limitation is settable in the APP.
*The default Speed limitation is 25km/h, You can set the speed limit in the app

Anti-theft tracking, lost bike tracking.

You can report lost when your bike is stolen. After you report lost, once the thief tried to connect the wheel with the APP, the system will locate the mobile phone, disable the motor immediately and upload the information to the server.

5 smart assist modes

We have spent 5 years on developing and optimizing the assist system. The assist system is based onthe speed, acceleration, the road slope, and also the assist level that you set in the APP or on theBluetooth display, calculating out the power you need. lt will assist you automatically when you pedalAnd we wilkeep on optimizing the system and publish it from time to time. You willbe able to update the system via the APP.

Commute mode Leisure mode Manual mode Exercise mode Climbing mode

IP65 waterproof grade

IP65 waterproof grade makes you ride freely in the rain.

Certifications

We has applied for more than 30 kinds of national patents,
9pcs software copyrights, 7pcs trademarks,
and the number of patents and software copyrights are increasing every year.

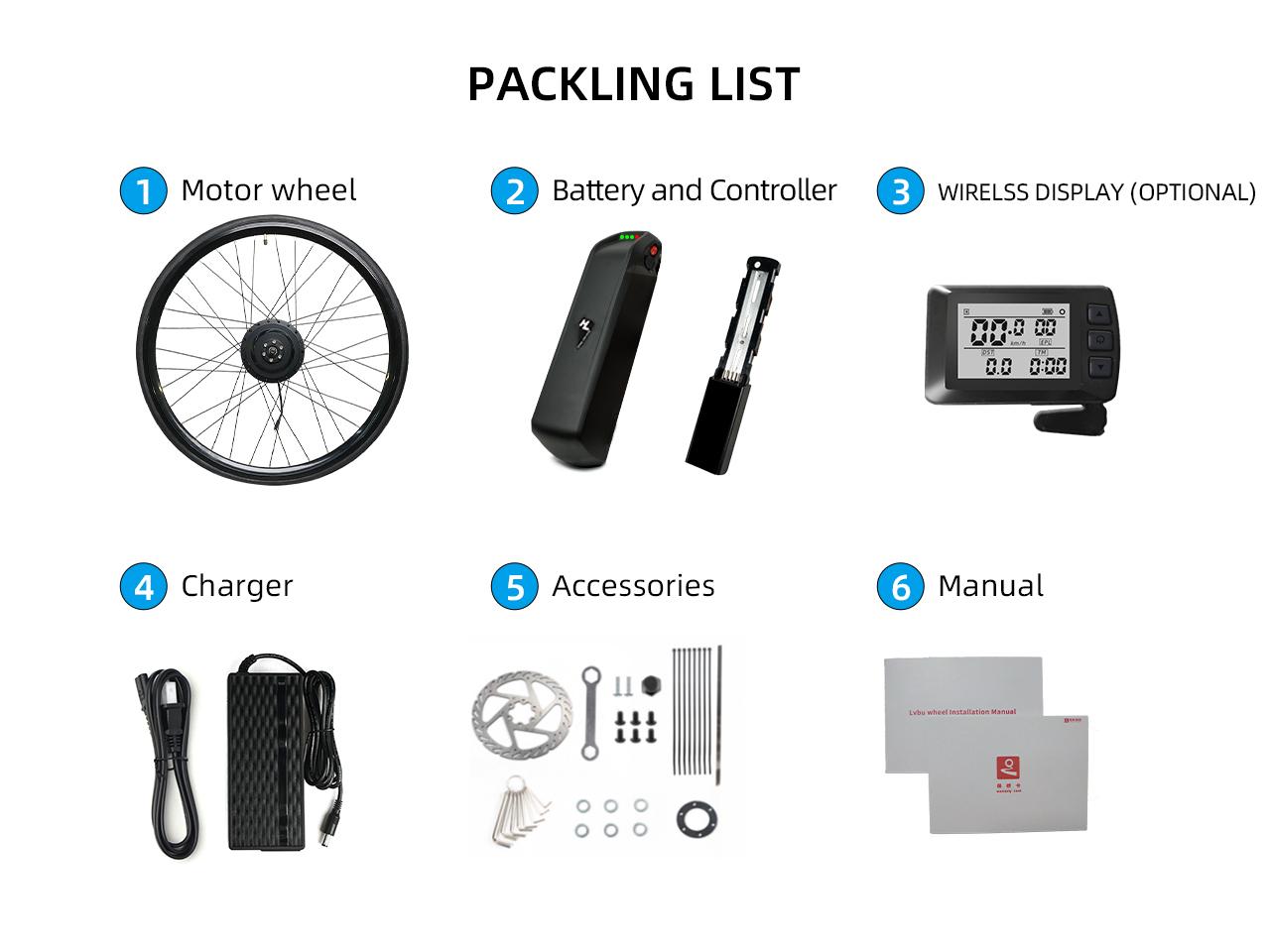

Packing list

1. Motor wheel 2. Battery 3. thumb throttle 4. Charger 5. Accessories 6. Manual
