BX Series

All In One Wheel 、easy installation、


LvBu Wheel BX series

Intelligent micro-powered wheels,
bicycles become smart motorcycles in seconds

Integrated wheel design / power-assisted endurance 30KM-90KM

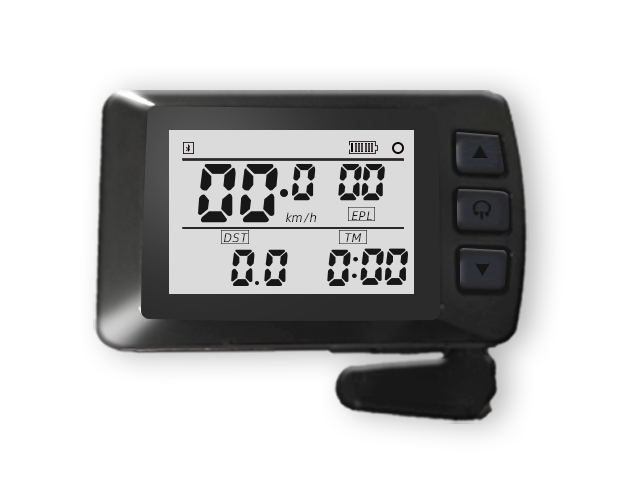

Wireless bluetooth code meter dial / APP control
anti-theft tracking / intelligent micro power system

  • 3 minutes

    installation

  • 16-29inch

    Various wheel
    specifications

  • 5 species

    Smart assistance mode

  • 35km/hour

    Maximum speed

  • 250w

    High-speed permanent
    magnet motor

  • Dual control driver

    Manual and automatic
    speed regulation

In 3 minutes, a bicycle becomes a smart motorcycle

The Lü Bu cloud wheel BX series can be quickly installed on your bicycle. You only need to remove the original front wheel and replace our cloud wheel. You don’t need to change any of the bicycle’s original line. Quick disassembly and replacement are more convenient.

16 inch-29 inch wheels can be installed

Lü Bu Yunlun BX series provides 16-inch, 20-inch, 24-inch, 26-inch, 27.5-inch, 29-inch, 700C and other rims of various specifications to meet the installation needs of most riders.

5 smart assist modes

The intelligent micro-power system, which has been developed for five years, continuously captures the vehicle's posture through the many precision sensors equipped on the wheels, automatically senses the assistance, and makes the riding as smooth as clouds and flowing water. The system is updated and updated from time to time according to user feedback to satisfy riding pleasure

  • Casual
  • Commuter
  • Workout
  • Manual
  • Climbing

Self-developed APP just to give you the best experience

You can use the mobile phone APP to control the wheels, realize the firmware upgrade in the air, adjust the assist mode, Assist level, check speed, temperature, power, mileage, set gyroscope angle, Firmware repair, firmware upgrade, fault detection, etc.

Anti-theft tracking, after the vehicle is stolen, the lost can be registered and the vehicle can be locked

Once the thief connects to the vehicle through the APP, it will be locked and unusable immediately. The buzzer will continue to alarm and immediately report the position of the thief, and notify the thief to return the vehicle, so that the owner can find the vehicle more easily

Speed ??up to 40km/h, speed limit via APP

The default maximum speed is 25km/h, and the speed limit can be increased to 35km/h through APP to meet the thrill of pursuit of speed


*According to national regulations, the speed of electric bicycles is not allowed to exceed 25km/hour, and the speed is increased only for test riding. Please do not use it on official riding roads

Overspeed alarm, safer riding, overspeed alarm value can be set through APP

After the current speed is greater than the speeding alarm value, the vehicle will continue to emit a "di di di" alarm to prompt the speeding, making riding safer


IP65 waterproof rating

The waterproof rating is as high as IP65, allowing you to ride unimpededly even in rainy days

250W high speed brushless permanent magnet motor

Small size, light weight, high efficiency, stable operation, long life
Planetary gear + clutch: no reluctance, even without electricity

250W
Rated power
500W
Maximum power

Power                  :         250W
Voltage                :            36V
Structure              : Gear Drive
Efficiency              :        >80%
Maximum torque :       30N.m

Closed integrated wheel hub design

The sense of science and technology is combined with the sense of fashion, and the fully enclosed glue-filling design makes the installation super simple
The motor, electronic control and battery are hidden in the wheel hub, maintenance-free, easy to use for ten years

Micro dynamic system

It took five years to concentrate on research and development
Combining with Lu Bu's intelligent power output algorithm to realize intelligent power assistance
Smart induction brake responds to the brake within 10ms, safe and reliable


uphill
Automatically increase power

Downhill
Automatically close the motor

ARM Cortex-M3 main chip

With 6-axis gyroscope motion processing chip
Configure Bluetooth Low Energy 4.0
10 pieces of high-sensitivity speed measuring magnets for precise speed measurement

Adopt 18650 power lithium battery

Automotive-grade power lithium-ion battery cell with internal resistance of only 18mΩ, capacity of 2900mA, 3C high-rate discharge compared with peer products, with higher consistency and greater energy density, fast charge and discharge performance of more than 1,000 charge and discharge, and 80% of the power. Service life 5-10 years

Adopt Taiwan high-performance and high-safety BMS battery protection system

  • Over-discharge protection
  • Overcurrent protection
  • Temperature protection
  • Overcharge protection
  • Short circuit protection
  • Battery balance

Bottom shaft charging, simple and convenient

Bottom shaft charging design, waterproof cap is waterproof, no need to remove the battery
Charging time: 1 hour (10D), 2 hours (20D), 3 hours (30D)

Product parameters
