What Makes a Good 250W EBike Conversion Kit? Answers to the Questions UK Riders Ask Most

In recent years, more and more cyclists have been choosing to electrify their regular bicycles with electric bicycle conversion kits — an ebike solution that preserves the bike’s original lightness and easy parking while significantly reducing physical effort during commuting, climbing, or long-distance rides. However, when selecting and installing the electric cycle kit,riders often have repeated questions about legality, range, installation difficulty, and safety. In this article, we summarize the five most common questions and provide practical, actionable answers based on the real specifications of the Lvbu KN Series KN20S ebike kit.

1. Is a 250W electric bicycle kit legal in the UK?
The hub motor kit is compliant if the electric hub motor’s continuous rated power does not exceed 250W, the assistance cuts off at 15.5 mph (≈25 km/h), and it operates as pedal assist (the motor only engages when the rider is pedaling). This ebikekit conversion system is classified as EAPCs (Electrically Assisted Pedal Cycles) and is legal to use on public roads in the UK. Otherwise, the vehicle would be treated as a motor vehicle and subject to stricter regulations.

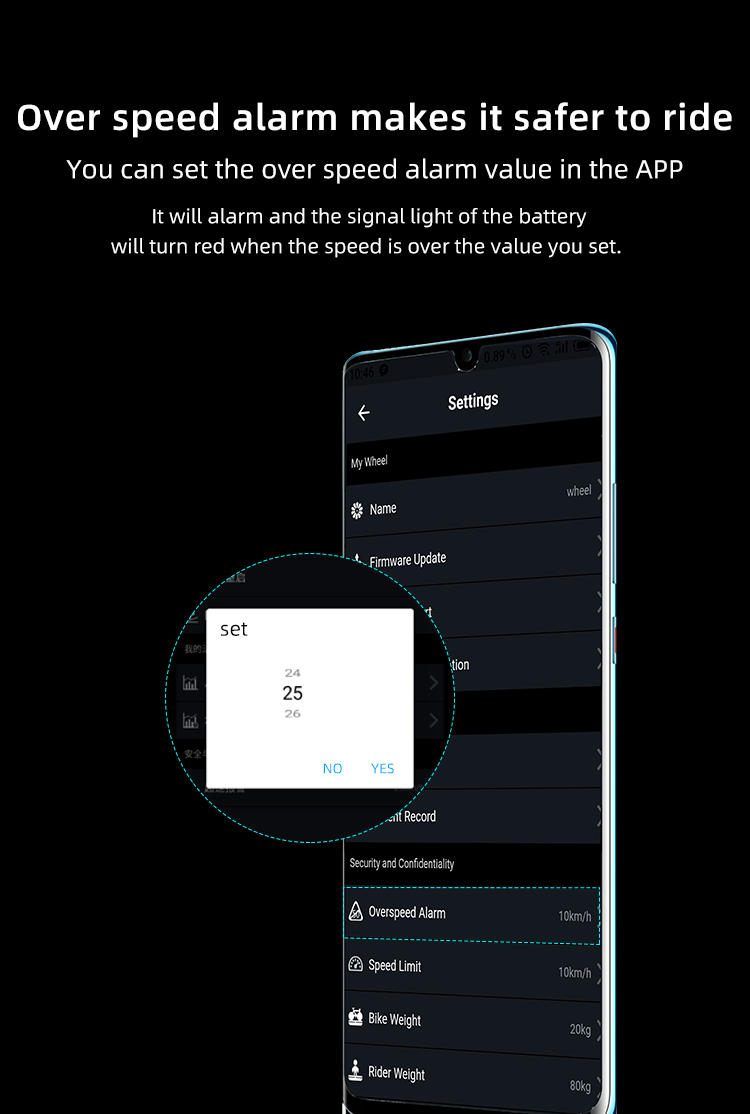

All Lvbu e bike kits are preset with a 25 km/h assist speed limit to fully meet UK EAPC requirements. Riders can also adjust the top assist speed to 32 km/h via the app for private-road use.

2. Which motor position (front hub, rear hub, or mid-drive) is more suitable for commuting in the UK?
For city commuting and easy ebike DIY installation, front wheel electric bike kit or rear swytch bike kit is typically the best choice. If you frequently ride steep hills or want the bicycle hub motor to work closely with the bike’s gearing system, the mid drive ebike kit offers better climbing efficiency and torque usage—but it is more complex to install, more expensive, and may cause some stress to the bike frame.

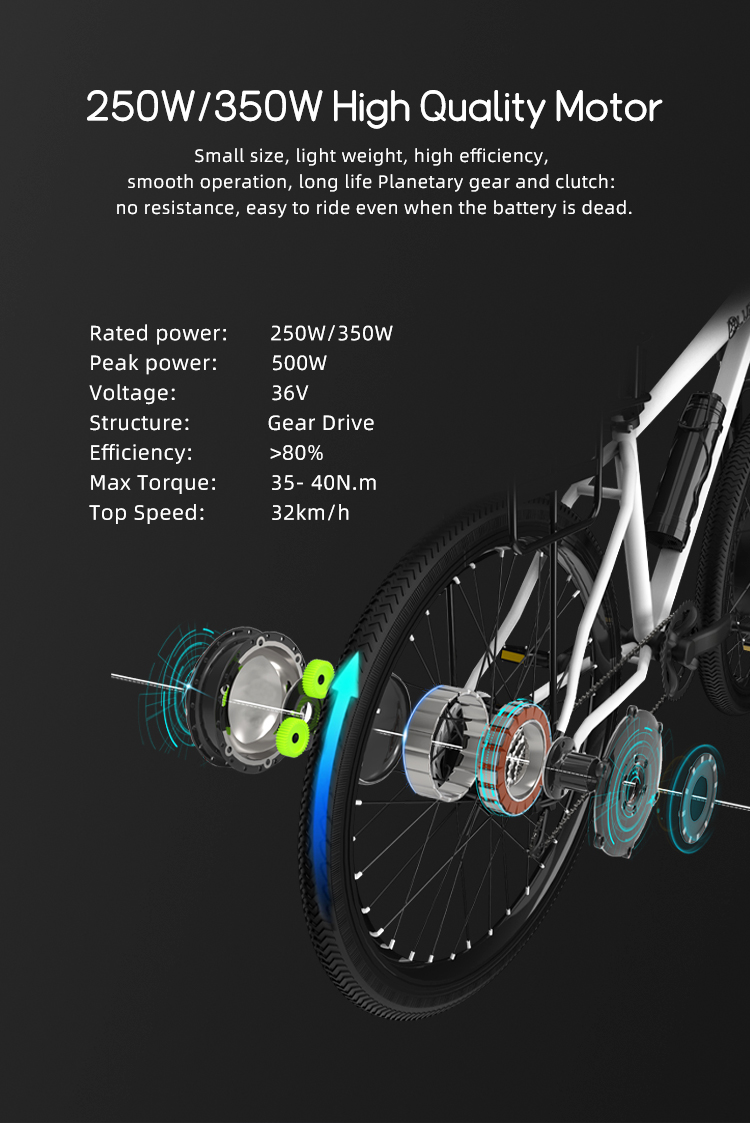

The Lvbu KN series KN20S swytch kit provides both front hub ebike kit and rear hub ebike kit options. Its motors use geared brushless technology with an efficiency above 80% and 30N.M –35 N.M of torque. Thanks to the planetary gear and clutch structure, the ebike hub motor kit performs smoothly during low-speed starts and hill climbs, and even when the battery runs out, the gear design minimizes pedaling resistance—making it highly suitable for urban riders.

3. How far can a 250W bicycle motor kit go (what’s the typical range)?
The range depends on factors such as the battery voltage/capacity (V/Ah), assistance level, terrain, and rider’s weight. A typical setup (36V, 10–15Ah) usually delivers around 30–80 km of mixed-terrain assist range, though actual performance varies and should be confirmed through the manufacturer’s specifications and real-world tests.

Taking the Lvbu KN20S bottle battery ebike conversion kit as an example, it comes with a 36V 6Ah bottle battery (using 18650 cells, 20 cells in total). Its tested assisted range is approximately 60 km (based on a 60 kg rider, 25°C temperature, 50% assistance level, and flat-road riding conditions). The N20 swytch battery requires about 3 hours to be fully charged, is removable, and supports Type-C charging.

4. Can I install the electric bike kit with battery myself at home? How difficult is the ebike modification?
Front electric bike kits for bicycles are generally the easiest for DIY ebike conversion, with plenty of online tutorials available. Rear wheel ebike conversion kit and mid drive electric bike kit require removing the wheelset/chain or modifying the frame, which involves higher technical skill. If you are not familiar with bicycle mechanics, it is recommended to have the electric bike conversion done by an experienced bike shop to ensure safety and compliance.

The LVBU easi fit ebike kit shares a key advantage: simple installation.

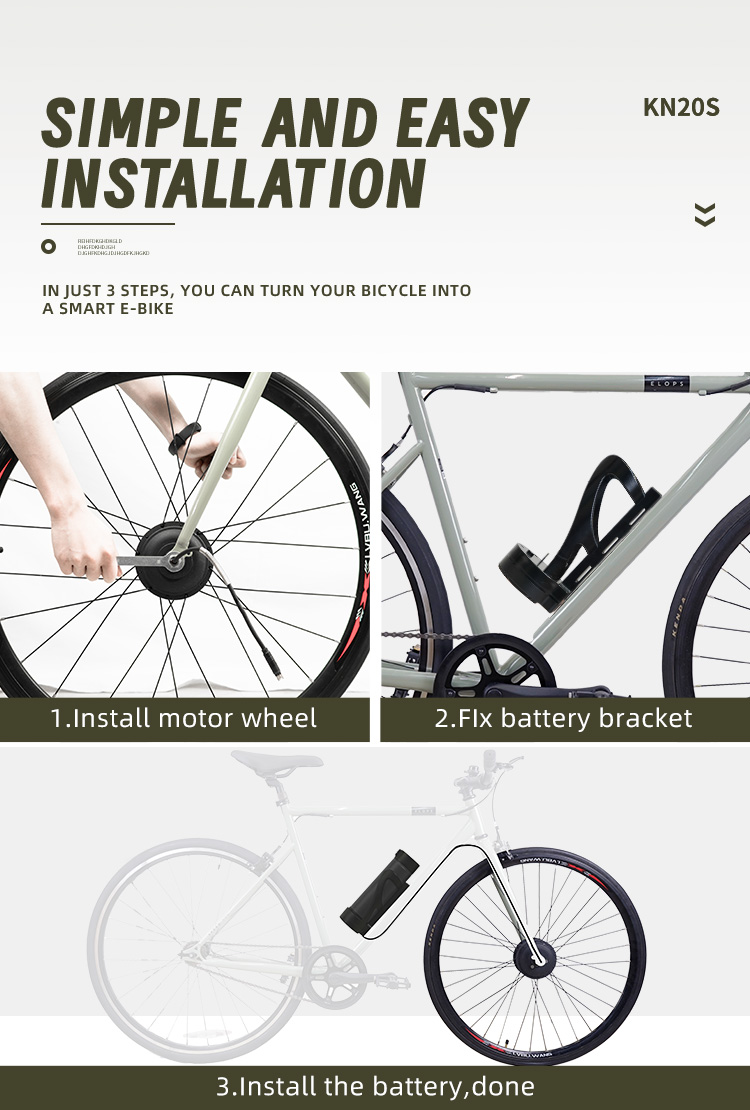

You only need to replace the front or rear wheel of your bicycle, install the electric motor wheel for bike and connect the battery and cables—basic installation can be completed in about 10 minutes. The lvbu electric bike kits with battery included also support multiple wheel sizes (12” 14” 16” 18” 20” 22” 24” 26” 27.5” 29”/700C), making them compatible with most standard bicycles. Optional accessories such as a Bluetooth ebikeling lcd display and electric bike conversion kit with built-in torque sensor are available for advanced users. For daily commuters or riders who want to get on the road quickly, a front wheel ebike kit is typically the most user-friendly DIY choice.

5. Do ebikes conversion kits and batteries pose any safety or fire risks?
Low-quality or uncertified batteries and chargers can indeed present risks such as overheating or fire. In the UK, government bodies and Parliament have repeatedly raised concerns about high-risk products, calling for tighter controls, removal of non-compliant items from retail channels, and stronger platform oversight.

When purchasing an electric bike motor kit, it is essential to choose batteries and suppliers with proper safety certifications and a reliable reputation. Avoid uncertified or unknown batteries and controllers; reputable manufacturers will clearly indicate the cell type, BMS protection features, and relevant certifications. Lvbu KN Series KN20S swytch ebike kit uses 18650 cells with a built-in BMS and multiple safety protection mechanisms. It is certified with CE/MSDS/RoHS, providing complete documentation and higher overall safety.

For most commuters and cycling enthusiasts in the UK, a compliant 250W e bike conversion kit with battery is not only a practical tool for enhancing the riding experience but also a sensible balance between legal requirements and performance. The Lvbu KN Series bicycle electric motor kit (KN20S), with its wide wheel-size compatibility, lightweight design, intelligent control system, and clearly defined specifications, offers a convenient and manageable ebike solution for riders looking to upgrade their regular bicycles into e-assist bikes:
- UK-compliant 250W motor
- Adjustable speed limit to 25 km/h
- Lightweight, easy installation, and clean appearance
- Removable battery with Type-C charging support
- Approximately 60 km pedal assist range, suitable for daily commuting
- Certified with CE/MSDS/RoHS, equipped with BMS protection
- Micro-power system with five selectable assist modes
- Online firmware updates and anti-theft tracking functions

If you’re looking for a ready-to-install, fully compliant, and low-maintenance swytch ebike conversion kit, the Lvbu KN Series bike conversion kit is a reliable choice built for long-term use. Upgrade your bicycle and make every ride faster, easier, and more effortless—starting now.

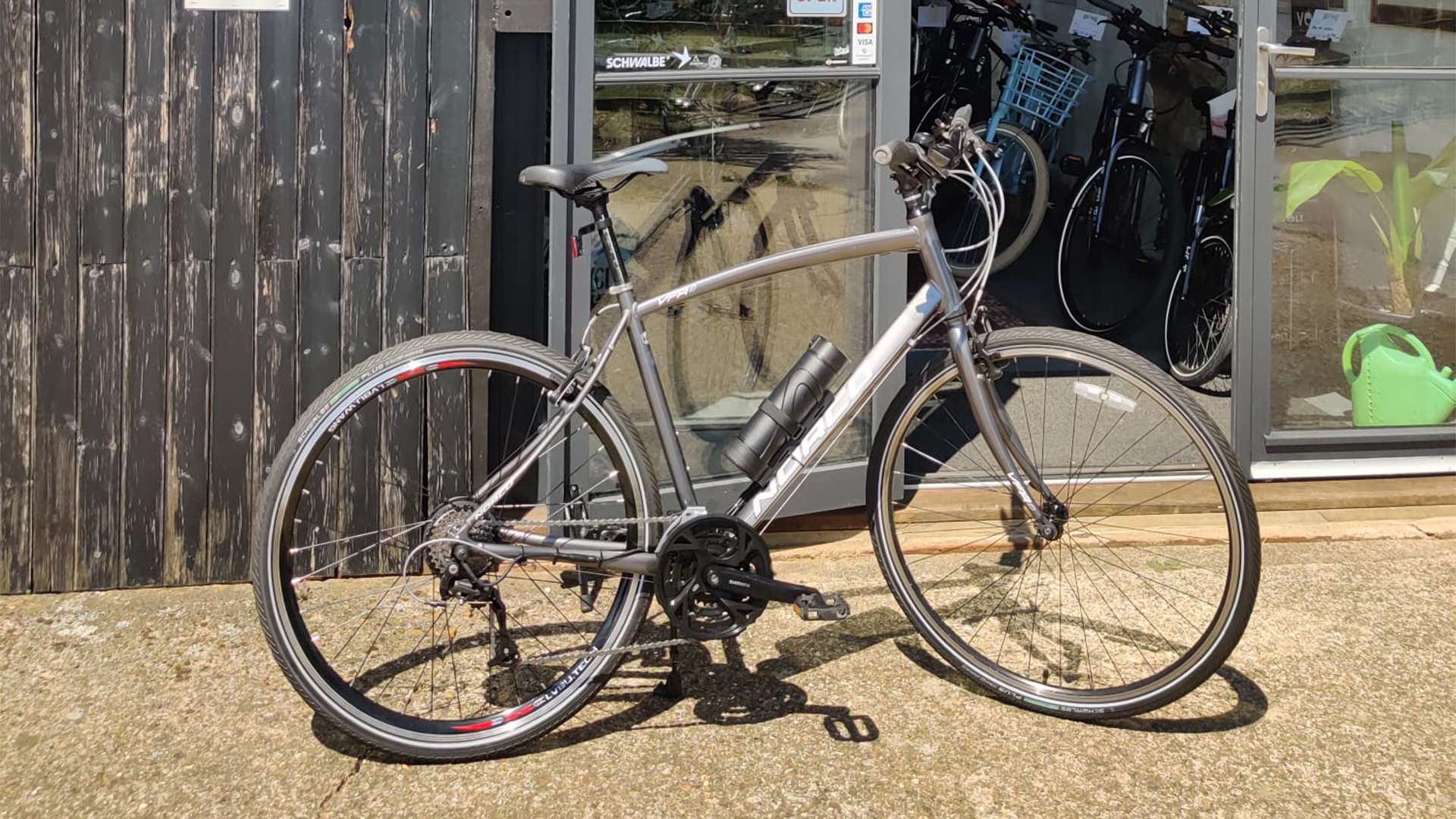

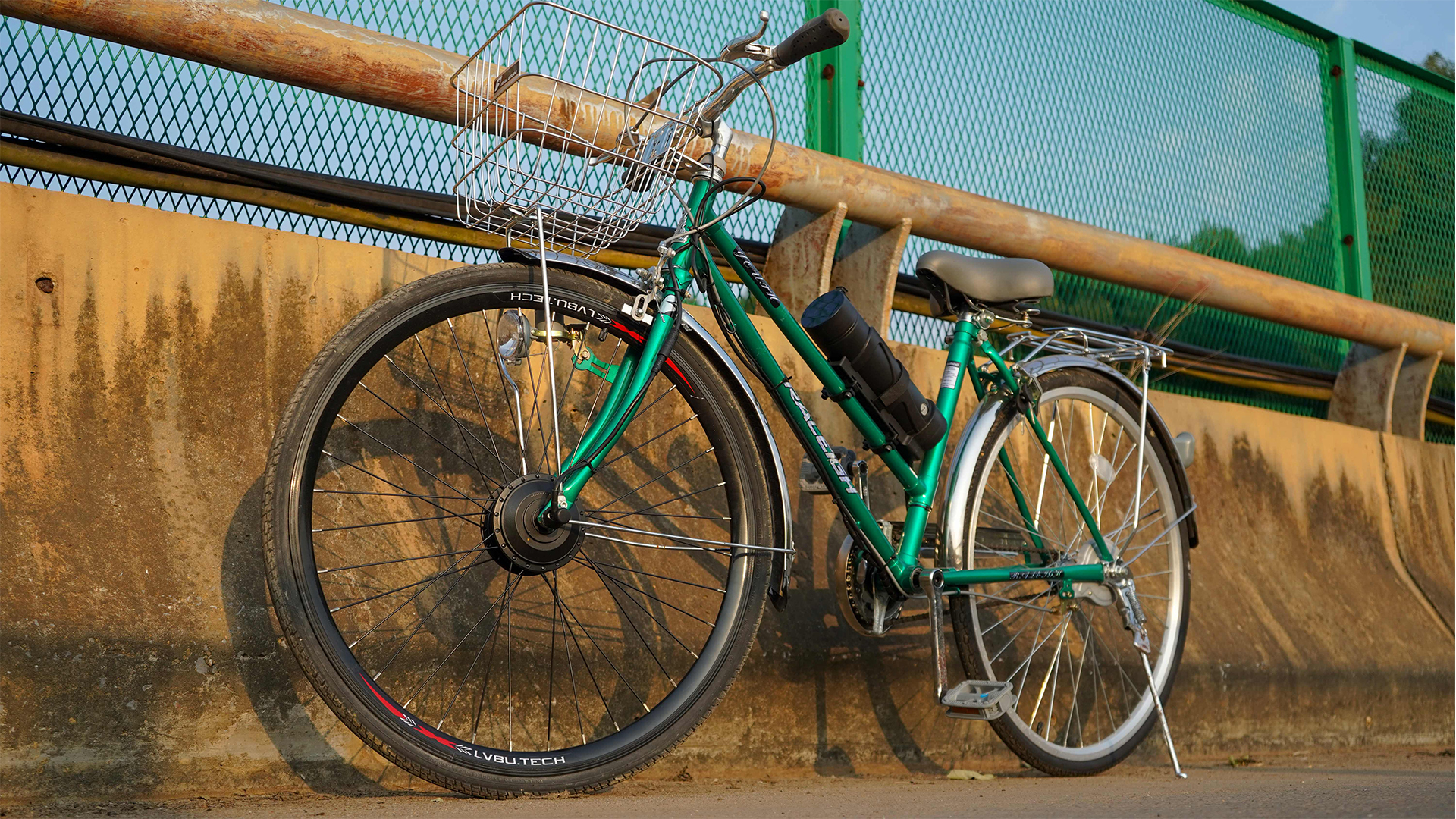

Photo provided by Ashley, 700x35C city bike

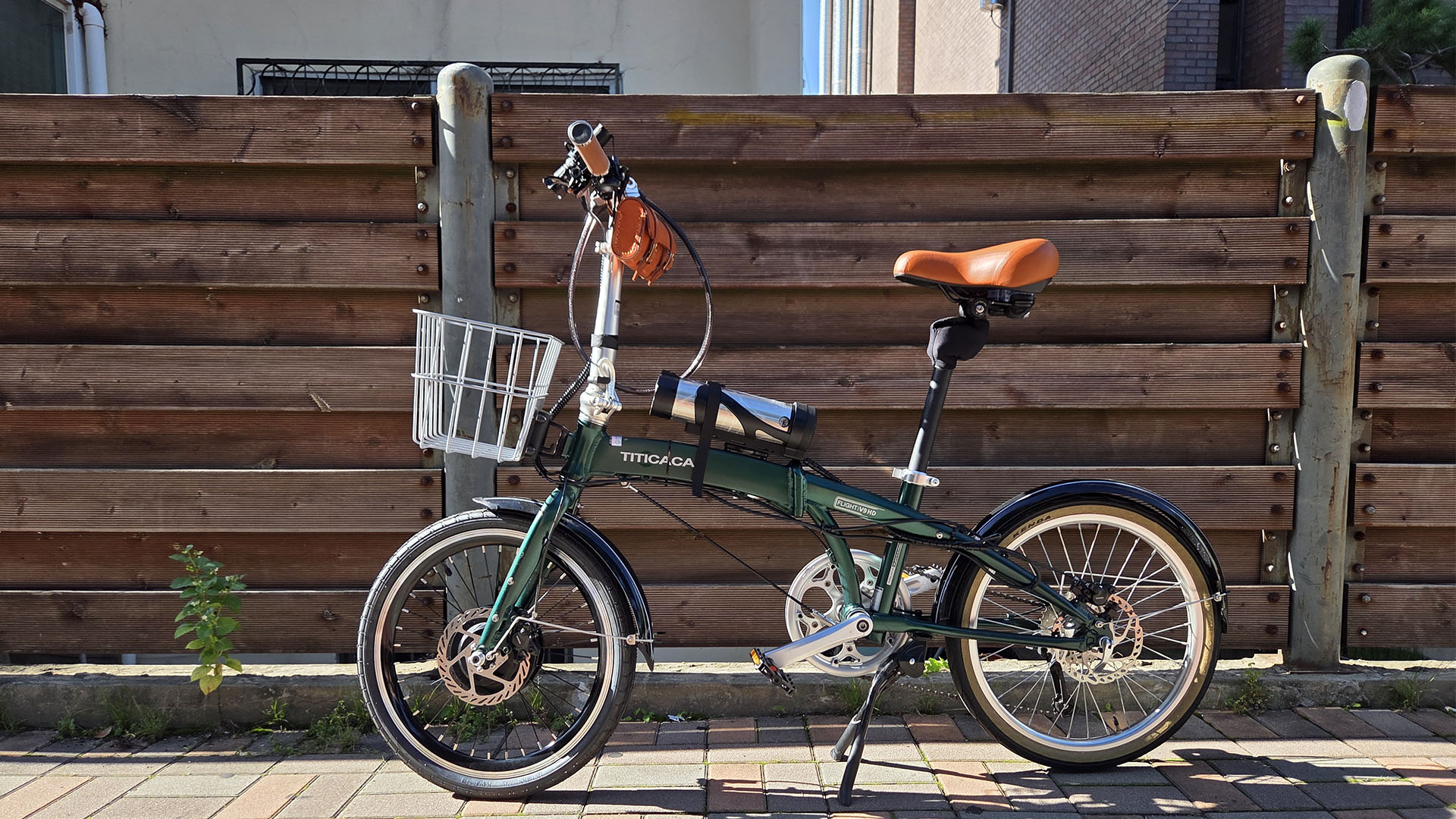

Image submitted by ilgyoon jeong, 20*1.5 small size

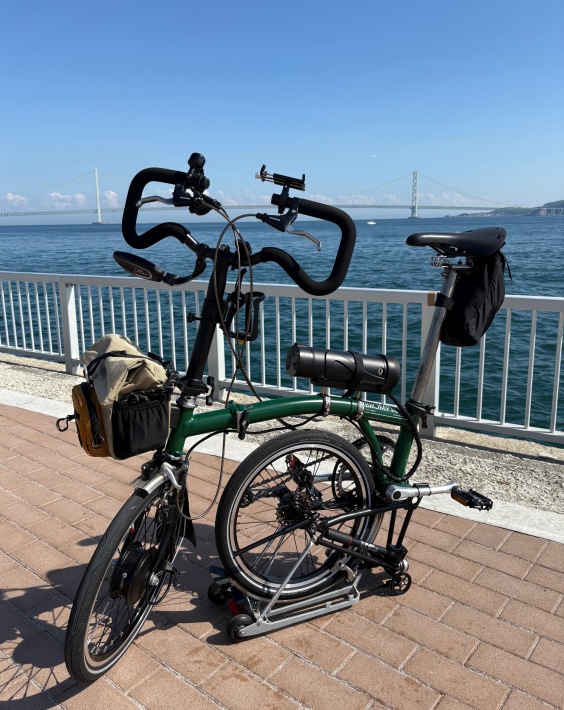

Photo from ISAMU Nagai, 16 inches Brompton bicycle

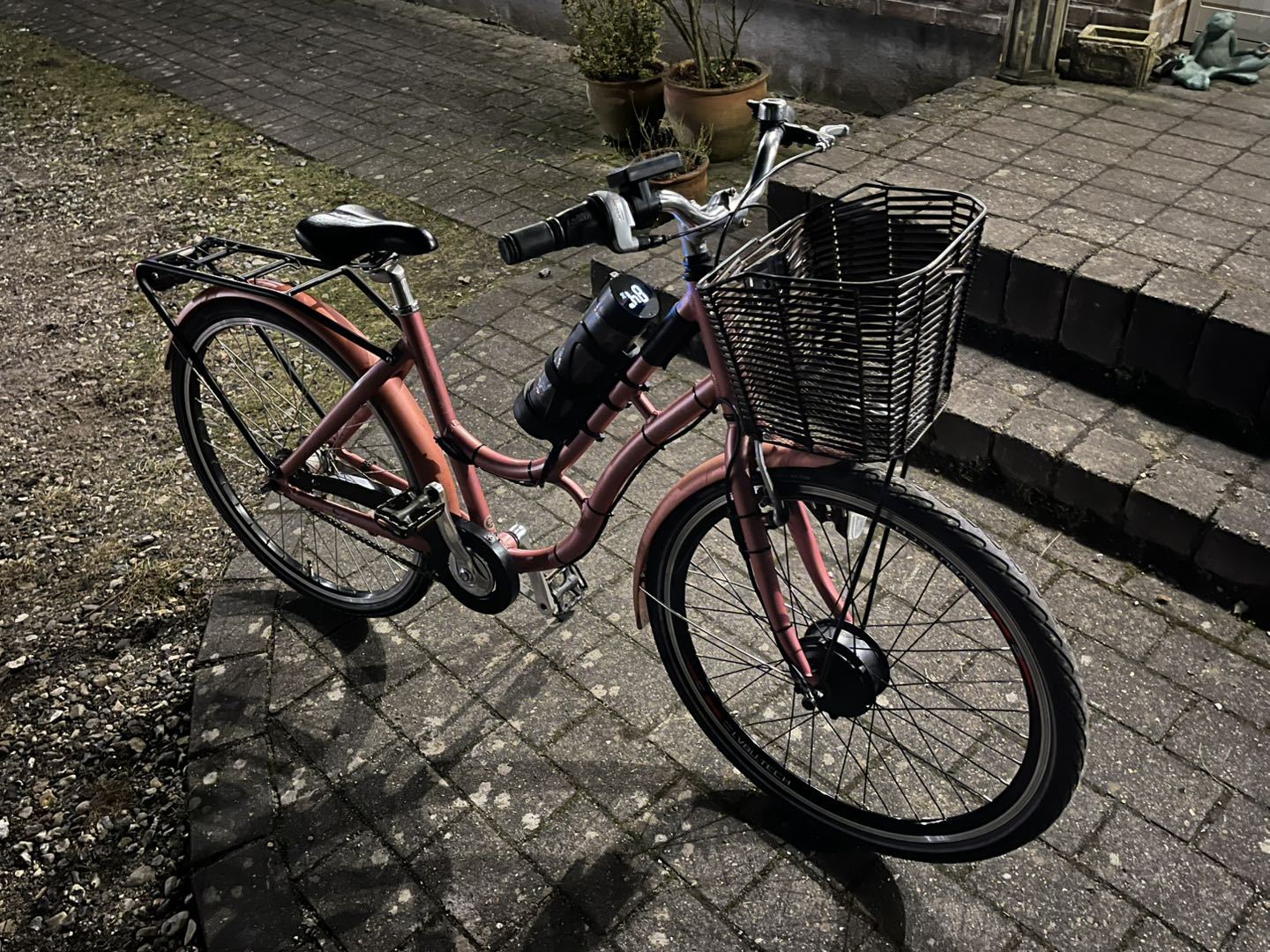

Image shared by Jes Juncher, 26x1.95 mtb electric conversion kit
